SL系列大功率齒輪箱C形軸端中心孔外形及安裝尺寸

齒輪箱

C形軸端中心孔，符合GB145-1985標準

推薦尺寸		C型
d₆¹^）		C型
大于	至	C中心孔 C-	d₁	d₂	d₃	d₄	d₅	t₁ +2	t₂		t₃ +1	t₄ ≈	t₅ ≈
大于	至	C中心孔 C-	d₁	d₂	d₃	d₄	d₅	t₁ +2	min. max.		t₃ +1	t₄ ≈	t₅ ≈
16	21	C6	M6	5	6.4	9.6	10.5	16	20	22	5	2.8	0.4
21	24	C8	M8	6.8	8.4	12.2	13.2	19	25	28	6	3.3	0.4
24	30	C10	M10	8.5	10.5	14.9	16.3	22	30	34	7.5	3.8	0.6
30	38	C12	M12	10.2	13	18.1	19.8	28	37	42	95	4.4	0.7
38	50	C16	M16	14	17	23	25.3	36	45	50	12	5.2	1.0
50	85	C20	M20	17.5	21	28.4	31.3	42	53	59	15	6.4	1.3
85	130	C24	M24	21	25	34.2	38	50	63	68	18	8	1.6
130*	225*	C30	M30*	26.5	31	44	48	60	77	83	17	11	1.9
225*	320*	C36	M36*	32	37	55	60	74	93	99	22	15	2.3
220*	500*	C42	M42*	37.5	43	65	71	84	105	111	26	19	2.7

1）工作加工后最終尺寸

*）不是根據GB145-1985確定的尺寸

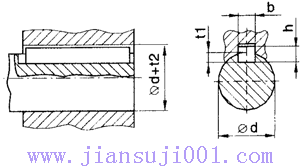

SL系列大功率齒輪箱平鍵和鍵槽外形安裝尺寸

齒輪箱

選擇ISO配合精度

平鍵和鍵槽

選擇ISO配合精度
選擇ISO配合精度	軸 d		軸公差	孔公差
	大于 mm	至 mm
軸公差根據OMITER標準確定		50	k6	H7
	50		m6

對于重載工件條件，如帶載反向回轉，建議采用比較緊密的配合，輪載鍵槽寬度亦應選擇ISOP9公差等級。

平鍵
平鍵緊固方式，采用無錐度聯結。平鍵和鍵槽根據GB/T1095-1979標準確定。 1）重載工作條件下輪載平鍵鍵槽寬度b的公差帶應按ISOJS9或ISOP9確定	直徑 d		寬度1） b 1） mm	高度 h mm	軸鍵槽深度 t₁ mm	軸轂鍵槽深度 d+t2 GB/T1095- 1979 mm
	大于 mm	至 mm	寬度1） b 1） mm	高度 h mm	軸鍵槽深度 t₁ mm	軸轂鍵槽深度 d+t2 GB/T1095- 1979 mm
	17 22 30	22 30 38	6 8 10	6 7 8	3.5 4 5	d+2.8 d+3.3 d+3.3
	38 44 50	44 50 58	12 14 16	8 9 10	5 5.5 6	d+3.3 d+3.8 d+4.3
	58 65 75	65 75 85	18 20 22	11 12 14	7 7.5 9	d+4.4 d-4.9 d+5.4
	85 95 110	95 110 130	25 28 32	14 16 18	9 10 11	d+5.4 d+6.4 d+7.4
	130 150 170	150 170 200	36 40 45	20 22 25	12 13 15	d+8.4 d+9.4 d+10.4
	200 230 260	230 260 290	50 56 63	28 32 32	17 20 20	d+11.4 d+12.4 d+12.4
	290 330 380	330 380 440	70 80 90	36 40 45	22 25 28	d+14.4 d+15.4 d+17.4

SLH2,SLH3,SLH4、SLB3,SLB4型帶漲緊盤的空心軸外形及安裝尺寸（規格3...26）

齒輪箱帶漲緊盤的空心軸

類型SLH2,SLH3,SLH4,SLB3,SLB4 規格3…26

類型SLH2D，SLH3D，SLB3D，SLB40
齒輪箱規 格	工作機驅動²^）								端板								彈性擋圈	空心軸				脹緊盤¹^）					螺釘
	d₂	d₃	d₄	d₅	f₁	l	l₁	r	c₁	c₂	d₇	d₈	D₉	m	s	數量	GB89/ 3.2-86	D₂	D₃	G₄	G₅	類型	d	d₁	H	W	S₁
	mm																mm
3	70 g₆	70 g₆	69.5	80	4	286	38	2	17	7	75	55	22	40	M8	2	75×2.5	70	70	125	180	90-32	90	155	38	20	M10
4	85 g₆	85 h₆	84.5	95	4	326	48	2	17	7	90	70	22	50	M8	2	90×3	85	85	140	205	110-32	110	185	49	20	M12
5	100 g₆	100h₆	99.5	114	5	383	53	2	20	8	105	80	26	55	M10	2	105×4	100	100	165	240	125-32	125	215	53	20	M12
6	110 g₆	110 h₆	109.5	124	5	383	58	3	20	8	115	85	26	60	M10	2	115×4	110	110	165	240	140-32	140	230	58	20	M14
7	120 g₆	120 h₆	119.5	134	5	453	68	3	20	8	125	90	26	65	M12	2	125×4	120	120	195	280	155-32	155	263	62	23	M14
8	130 g₆	130 h₆	129.5	145	6	458	73	3	20	8	135	100	33	70	M12	2	135×4	130	130	195	285	165-32	165	290	68	23	M16
9	140 g₆	145 m₆	139.5	160	6	539	82	4	23	10	150	110	33	80	M12	2	150×4	140	145	235	330	175-32	175	300	68	28	M16
10	150 g₆	155 m₆	149.5	170	6	559	92	4	23	10	160	120	33	90	M12	2	160×4	150	155	235	350	200-32	200	340	85	28	M16
11	165 f₆	170 m₆	164.5	185	7	644	112	4	23	10	175	130	33	90	M12	2	175×4	165	170	270	400	220-32	220	370	103	30	M20
12	180 f₆	185 m₆	179.5	200	7	649	122	4	23	10	190	140	33	100	M16	2	190×4	180	185	270	405	240-32	240	405	107	30	M20
13	190 f₆	195 m₆	189.5	213	7	789	137	5	23	10	200	150	33	110	M16	2	200×4	190	195	335	480	260-32	260	430	119	30	M20
14	210 f₆	215 m₆	209.5	233	8	784	147	5	28	14	220	170	33	130	M16	2	220×5	210	215	335	480	280-32	280	460	132	30	M20
15	230 f₆	235 m₆	229.5	253	8	899	157	5	28	14	240	180	39	140	M16	2	240×5	230	235	380	550	300-32	300	485	140	35	M24
16	240 f₆	245 m₆	239.5	263	8	899	157	5	28	14	250	190	39	150	M20	2	250×5	240	245	380	550	320-32	320	520	140	35	M24
17	250 f₆	260 m₆	249.5	278	8	982	177	5	30	14	265	200	39	150	M20	2	265×5	250	260	415	600	340-32	340	570	155	35	M24
18	280 f₆	285 m₆	279.5	306	9	982	177	5	30	14	290	210	39	160	M20	2	290×5	280	285	415	600	360-32	360	590	162	35	M24
19	285 f₆	295 m₆	284.5	316	9	1100	187	5	32	15	300	220	39	170	M24	2	300×5	295	295	465	670	380-32	380	640	166	40	M27
20	310 f₆	315 m₆	309.5	336	9	1100	187	5	32	15	320	230	39	180	M24	2	320×6	315	315	465	670	390-32	390	650	166	40	M27
21	330 f₆	335 m₆	329	258	9	1160	205	5	40	20	340	250	45	190	M24	2	340×6	335	335	490	715	420-32	420	670	186	45	M27
22	340 f₆	345 m₆	339	368	9	1170	215	5	40	20	350	260	45	200	M24	2	350×6	345	345	490	725	440-32	440	720	194	45	M27
23	根據用戶要求供貨
24
25
26

1）脹緊盤不在我們的供貨范圍之內。如有需要的話，請另行訂貨。

2）工作機驅動軸材質：60或強度更高的鋼。根據用戶要求，脹緊盤可布置在工作機側。工作機驅動軸尺寸函索即復。

SLB2D型大功率齒輪箱帶漲緊盤的空心軸外形及安裝尺寸（規格2...18）

齒輪箱帶漲緊盤的空心軸

類型SLB2D 規格2…18

類型SLB2D
齒輪箱規 格	工作機驅動²^）								端板								彈性擋圈	空心軸				脹緊盤¹^）					螺釘	防護罩
	d₂	d₃	d₄	d₅	f₁	l	l₁	r	c₁	c₂	d₇	d₈	D₉	m	s	數量	GB89/ 3.2-86	D₂	D₃	G₄	G₅	類型	d	d₁	H	W	S₁	D	g
	mm																mm
2	60 g₆	60 g₆	59.5	70	3	300	36	2	13	6	65	47	22	35	M6	2	65×2.5	60	60	135	180	80-32	80	141	31	16	M10	180	200
3	70 g₆	70 h₆	69.5	80	4	326	38	2	17	7	75	55	22	40	M8	2	75×2.5	70	70	145	200	90-32	90	155	38	20	M10	200	220
4	85 g₆	85 h₆	84.5	95	4	386	48	2	17	7	90	70	22	50	M8	2	90×3	85	85	170	235	110-32	110	185	49	20	M12	235	250
5	100 g₆	100 h₆	99.5	114	5	453	53	2	20	8	105	80	26	55	M10	2	105×4	100	100	200	275	125-32	125	215	53	20	M12	275	285
6	110 g₆	110 h₆	109.5	124	5	453	58	3	20	8	115	85	26	60	M10	2	15×4	110	110	200	275	140-32	140	230	58	20	M14	285	285
7	120 g₆	120 h₆	119.5	134	5	533	68	3	20	8	125	90	26	65	M12	2	125×4	120	120	235	320	155-32	155	263	62	23	M14	330	335
8	130 g₆	130 h₆	129.5	145	6	538	73	3	20	8	135	100	26	70	M12	2	135×4	130	130	235	325	165-32	165	290	68	23	M16	340	340
9	140 g₆	145 m₆	139.5	160	6	609	82	4	23	10	150	110	33	80	M12	2	150×4	140	145	270	365	175-32	175	300	68	28	M16	360	380
10	150 g₆	155 m₆	149.5	170	6	629	92	4	23	10	160	120	33	90	M12	2	160×4	150	155	270	385	200-32	200	340	85	28	M16	395	400
11	165 g₆	170 m₆	164.5	185	7	744	112	4	23	10	175	130	33	90	M12	2	175×4	165	170	320	450	220-32	220	370	103	30	M20	435	470
12	180 g₆	185 m₆	179.5	200	7	749	122	4	23	10	190	140	33	100	M16	2	190×4	180	185	320	455	240-32	240	405	107	30	M20	450	470
14	210 g₆	215 m₆	209.5	233	8	894	147	5	28	14	220	170	33	130	M16	2	220×5	210	215	390	535	280-32	280	460	132	30	M20	525	555
16	240 g₆	245 m₆	239.5	263	8	1039	157	5	28	14	250	190	39	150	M20	2	250×5	240	245	450	620	320-32	320	520	140	35	M24	595	645
18	280 g₆	285 m₆	279.5	306	9	1177	177	5	30	14	290	210	39	160	M20	2	290×5	280	285	510	700	360-32	360	590	162	35	M24	635	725

1）脹緊盤不在我們的供貨范圍之內。如有需要的話，請另行訂貨。

2）工作機驅動軸材質：60或強度更高的鋼。根據用戶要求，脹緊盤可布置在工作機側。工作機驅動軸尺寸函索即復。

SLH2,SLH3,SLH4、SLB3,SLB4型齒輪箱帶平鍵聯接的空心軸外形安裝尺寸（規格3...18）

齒輪箱帶平鍵聯接的空心軸

類型SLH2,SLH3,SLH4,SLB3,SLB4

規格3…18

	類型SLH2,2SLH3,SLH4,SLB3,SLB4
齒輪箱規 格	工作機驅動²^）									端板					螺釘		空心軸
	d₂	d₄	d₅	f₁	l	l₁	r	s	t	c	D	D₉	d	m	規格	數量	D₂	G₄	g
	mm															數量	mm
3	65	64.5	73	4	248	30	1.2	M10	18	8	11	18	78	45	M10×25	2	65	125	35
4	80	79.5	88	4	278	35	1.2	M10	18	10	11	22	100	60	M10×25	2	80	140	35
5	95	94.5	105	5	328	40	1.6	M10	18	10	11	26	120	70	M10×25	2	95	165	40
6	105	104.5	116	5	328	45	1.6	M10	18	10	11	26	120	70	M10×25	2	105	165	40
7	115	114.5	126	5	388	50	1.6	M12	20	12	13.5	26	140	80	M12×30	2	115	195	40
8	125	124.5	136	6	388	55	2.5	M12	20	12	13.5	26	150	85	M12×30	2	125	195	40
9	135	134.5	147	6	467	60	2.5	M12	20	12	13.5	33	160	90	M12×30	2	135	235	45
10	150	149.5	162	6	467	65	2.5	M12	20	12	13.5	33	185	110	M12×30	2	150	235	45
11	165	164.5	177	7	537	70	2.5	M16	28	15	17.5	33	195	120	M16×40	2	165	270	45
12	180	179.5	192	7	537	75	2.5	M16	28	15	17.5	33	220	130	M16×40	2	180	270	45
13	190	189.5	206	7	667	80	3	M16	28	18	17.5	33	230	140	M16×40	2	190	335	45
14	210	209.5	226	8	667	85	3	M16	28	18	17.5	33	250	160	M16×40	2	210	335	45
15	230	229.5	248	8	756	100	3	M20	38	25	22	39	270	180	M20×55	4	230	380	60
16	240	239.5	258	8	756	100	3	M20	38	25	22	39	280	180	M20×55	4	240	380	60
17	250	249.5	270	8	826	110	4	M20	38	25	22	39	300	190	M20×55	4	250	415	60
18	275	274.5	295	9	826	120	4	M20	38	25	22	39	330	210	M20×55	4	275	415	60

1）工作機驅動軸材質：60或強度更高的鋼，平鍵不在我們的供貨范圍之內，如果需要的話，請另行定貨。

SLB2H型齒輪箱帶平鍵聯接的空心軸外形及安裝尺寸（規格2...18）

齒輪箱帶平鍵聯接的空心軸

類型SLB2H 規格2…18

	類型SLH2H
齒輪箱規 格	工作機驅動²^）									端板					螺釘		空心軸
	d₂	d₄	d₅	f₁	l	l₁	r	s	t	c	D	D₉	d	m	規格	數量	D₂	G₄	g
	mm															數量	mm
2	55	54.5	63	3	268	30	1.2	M8	15	8	9	18	70	40	M8×20	2	55	135	35
3	65	64.5	73	4	288	30	1.2	M10	18	8	11	18	78	45	M10×25	2	65	145	35
4	80	79.5	88	4	338	35	1.2	M10	18	10	11	22	100	60	M10×25	2	80	170	35
5	95	94.5	105	5	398	40	1.6	M10	18	10	11	26	120	70	M10×25	2	95	200	40
6	105	104.5	116	5	398	45	1.6	M10	18	10	11	26	120	70	M12×30	2	105	200	40
7	115	114.5	126	5	468	50	1.6	M12	20	12	13.5	26	140	80	M12×30	2	115	235	40
8	125	124.5	136	6	468	55	2.5	M12	20	12	13.5	33	150	85	M12×30	2	125	235	40
9	135	134.5	147	6	537	60	2.5	M12	20	12	13.5	33	160	90	M12×30	2	135	270	45
10	150	149.5	162	6	537	65	2.5	M12	20	12	13.5	33	185	110	M12×30	2	150	270	45
11	165	164.5	177	7	637	70	2.5	M16	28	12	17.5	33	195	120	M16×40	2	165	320	45
12	180	179.5	192	7	637	75	2.5	M16	28	15	17.5	33	220	130	M16×40	2	180	320	45
14	210	209.5	226	8	777	85	3	M16	28	18	17.5	33	250	160	M16×40	2	210	390	45
16	240	239.5	258	8	896	100	3	M20	38	25	22	39	280	180	M20×55	4	240	450	60
18	275	274.5	295	9	1016	120	4	M20	38	25	22	39	330	210	M20×55	4	275	510	60

1）工作機驅動軸材質：60或強度更高的鋼，平鍵不在我們的供貨范圍之內，如果需要的話，請另行定貨。

SLH1，SLH2，SLH3，SLH4型平行軸大功率齒輪箱實際速比（規格1...13）

平行軸齒輪箱實際速比

類型SLH1…SLH2…SLH3…SLH4…

規格1…13

實際速比i
iN	齒輪箱規格
iN	1	2	3	4	5	6	7	8	9	10	11	12	13
1.25	1.250		1.243		1.256		1.263		1.270
1.4	1.415		1.371		1.378		1.389		1.400
1.6	1.605		1.594		1.588		1.606		1.625		1.636		1.588
1.8	1.829		1.829		1.839		1.774		1.800		1.806		1.839
2.0	2.000		2.000		2.034		1.966		2.000		2.000		2.034
2.24	2.194		2.194		2.259		2.308		2.231		2.222		2.259
2.5	2.536		2.536		2.520		2.583		2.500		2.480		2.520
2.8	2.808		2.808		2.826		2.800		2.741		2.783		2.826
3.15	3.125		3.125		3.190		3.130		3.208		3.080		3.208
3.55	3.500		3.500		3.591		3.524		3.591		3.478		3.591
4.0	3.950		3.950		4.050		4.000		4.050		3.905		4.050
4.5	4.476		4.435		4.619		4.400		4.381		4.421		4.619
5.0	5.053		4.952		4.900		4.905		4.947		5.150		4.900
5.6	5.571		5.579		5.556		5.526		5.684		5.474		5.556
6.3			6.232	6.319	6.286		6.088		6.260		6.246		6.410
7.1			7.099	6.857	7.213		7.048		7.247		6.900		7.100
8.0			7.765	7.778	7.889	7.792	7.799	7.676	8.018	7.848	7.644	7.941	7.889
9.0			8.516	8.485	8.652	8.940	8.660	8.887	8.904	9.085	8.974	8.772	8.799
10			9.845	9.722	10.002	9.778	9.660	9.833	9.932	10.053	10.046	9.718	9.861
11.2			10.900	10.694	11.075	10.724	10.648	10.920	11.138	11.163	10.889	11.410	10.811
12.5			12.132	12.444	12.326	12.397	11.807	12.180	12.574	12.452	12.174	12.772	12.655
14			13.588	13.865	13.806	13.726	13.939	13.426	14.152	13.964	13.704	13.844	14.164
16			15.335	15.556	15.581	15.278	15.717	14.887	16.962	15.765	15.556	15.478	15.975
18			17.378	17.602	17.493	17.111	17.598	17.576	18.204	17.743	17.111	17.423	17.280
20			19.616	19.444	19.534	19.311	19.742	19.817	19.312	20.012	19.074	19.778	19.515
22.4			21.630	22.037	22.006	21.681	20.982	22.189	21.895	22.824	21.491	21.756	22.020
25					25.011	24.212	25.540	24.892	25.439	24.212	24.706	24.251	25.372
28					28.490	27.275	27.711	26.456	29.187	27.451	28.602	27.325	29.373
31.5					31.161	30.999	31.433	32.202	31.924	31.894	31.648	31.412	32.501
35.5					34.177	35.312	34.291	34.940	35.013	36.593	35.144	36.366	36.092
40					39.508	38.622	39.292	39.633	40.474	40.024	39.200	40.238	40.257
45					43.745	42.360	43.221	43.236	44.816	43.897	43.210	44.683	45.147
50					48.689	48.967	50.293	49.542	49.881	50.744	47.911	49.840	50.968
56					54.532	54.220	56.033	54.496	55.866	56.187	56.566	54.938	57.365
63					61.543	60.347	62.867	63.413	63.049	62.537	63.778	60.916	64.699
71					69.742	67.589	71.139	70.651	70.787	70.041	71.414	71.919	73.789
80					78.723	76.279	78.583	79.267	79.049	79.046	80.111	81.089	78.278
90					86.806	86.440	89.061	89.696	89.050	88.748	85.146	90.798	88.750
100						97.572	101.554	99.083	101.210	99.106	103.639	101.856	103.114
112						107.590	115.256	112.294	115.290	111.645	112.450	108.257	118.306
125							125.733	128.046	126.098	126.890	127.556	131.769	129.398
140							143.985	145.322	138.301	144.542	139.152	142.973	141.920
160							158.251	158.533	159.874	158.093	159.444	162.178	164.058
180							174.630	181.546	177.022	173.392	175.389	176.921	181.654
200							193.629	199.533	197.028	200.439	204.089	202.722	202.184
224							228.606	220.185	220.671	221.938	227.382	222.994	226.446
250							257.753	244.141	249.043	247.020	255.111	259.484	255.560
280							288.615	288.242	282.219	276.663	288.678	289.100	286.925
315							305.352	324.993	318.563	312.234	318.889	324.356	320.413
355							344.112	363.906	351.273	353.827	361.407	367.034	360.951
400								385.010		399.393		405.444
450								433.881		440.402		459.504

SLH1，SLH2，SLH3，SLH4型平行軸大功率齒輪箱實際速比（規格14...26）

平行軸齒輪箱實際速比

類型SLH1…SLH2…SLH3…SLH4…

規格14…26

實際速比i
齒輪箱規格													iN
14	15	16	17	18	19	20	21	22	23	24	25	26
													1.25
													1.4
													1.6
													1.8
	2.000		2.000		1.967								2.0
	2.231		2.250		2.296								2.24
	2.481		2.481		2.560								2.5
	2.760		2.760		2.870								2.8
	3.087		3.087		3.238								3.15
	3.476		3.476		3.450								3.55
	3.947		3.947		3.944								4.0
	4.579		4.526		4.400								4.5
	5.100		4.900		4.950								5.0
	5.778		5.556		5.700								5.6
	6.449		6.154		6.410		6.500		6.306		6.280		6.3
	7.120	7.316	7.125	7.147	7.100	7.312	7.200	7.265	7.038	7.059	6.915	7.232	7.1
7.944	7.882	8.076	7.884	8.274	7.889	8.100	8.000	8.047	7.882	7.878	7.635	7.963	8.0
8.800	8.758	8.941	8.755	9.155	8.799	9.000	8.923	8.941	8.868	8.824	8.915	8.792	9.0
9.778	9.774	9.935	9.765	10.167	9.788	10.038	9.926	9.973	9.780	9.926	9.939	10.266	10
10.906	10.967	11.087	10.951	11.340	10.887	11.167	11.040	11.094	10878	10.948	11.141	11.445	11.2
12.222	12.139	12.440	12.432	12.717	12.176	12.420	12.348	12.339	12.166	12.176	12.571	12.829	12.5
13.399	13.708	13.796	13.915	14.438	13.712	13.891	13.905	13.801	13.700	13.619	13.394	14.476	14
15.685	15.389	15.550	15.694	16.159	15.570	15.643	15.789	15.541	15.557	15.336	15.314	15.424	16
17.556	17.424	17.457	17.899	18.225	18.061	17.763	18.316	17.647	17.839	17.415	17.082	17.634	18
19.800	20.297	19.765	18.988	20.786	20.117	20.605	20.400	20.471	19.312	19.969	19.218	19.671	20
21.418	21.374	23.024	20.930	22.050	21.782	22.950	22.368	22.800	22.039	21.618	21.108	22.129	22.4
24.187	24.716	24.245	24.202	24.306	25.283	24.850	25.837	25.000	25.457	24.671	24.322	24.306	25
27.292	27.304	28.036	26.736	28.106	28.006	28.844	28.523	28.877	28.103	28.497	28.157	28.007	28
31.447	30.248	30.971	29.619	31.048	31.117	31.950	31.579	31.879	31.115	31.459	31.156	32.424	31.5
36.406	35.514	34.311	34.776	34.397	34.708	35.500	35.088	35.294	34.572	34.830	34.598	35.876	35.5
40.283	39.756	40.284	38.929	40.385	38.897	39.596	39.158	39.216	38.582	38.700	38.591	39.840	40
44.733	43.090	45.096	42.194	45.208	42.642	44.75	43.936	43.765	43.290	43.189	43.278	44.438	45
49.896	48.175	48.878	47.174	49.000	49.917	48.648	48.632	49.105	47.916	48.459	49.132	49.835	50
55.957	54.229	54.647	53.102	54.783	55.870	56.948	54.920	54.353	54.112	53.638	54.990	56.576	56
63.171	61.557	61.514	60.278	61.667	63.013	63.739	61.654	61.381	60.747	60.573	62.021	63.322	63
71.100	67.713	69.826	66.306	70.000	68.162	71.888	69.806	68.908	68.780	68.001	70.735	71.418	71
80.190	75.481	76.809	73.912	77.000	76.974	77.762	81.316	78.019	80.120	76.992	75.037	81.452	80
91.457	85.046	85.620	83.279	85.833	88.439	87.816	86.427	90.882	85.156	89.687	85.076	86.407	90
97.020	97.768	96.471	95.735	96.711	100.079	100.895	99.020	96.594	97.564	95.323	100.783	97.967	100
110.00	113.186	110.901	110.833	111.176	115.862	114.174	109.386	110.670	107.778	109.214	111.637	116.054	112
127.803	125.238	128.390	122.634	128.710	128.198	132.180	121.182	122.255	119.400	120.647	124.041	128.552	125
146.633	139.074	142.060	136.183	142.414	142.362	146.254	142.279	135.439	140.186	133.657	138.354	142.835	140
160.380	155.125	157.756	151.900	158.148	158.792	162.413	159.273	159.017	156.931	156.925	155.051	159.316	160
175.901	170.993	175.962	167.438	176.400	178.079	181.156	172.632	178.011	170.093	175.669	169.982	178.544	180
203.339	189.597	193.962	185.656	194.444	201.040	203.160	193.004	192.941	190.166	190.042	198.983	195.737	200
225.149	223.845	215.065	219.192	215.600	226.272	299.355	217.257	215.711	214.062	212.872	222.710	229.132	224
250.594	252.385	253.914	247.139	254.545	255.201	258.141	246.617	242.817	242.990	239.622	251.183	256.454	250
280.665	282.605	286.288	276.730	287.000	291.058	291.114	217.278	275.630	267.289	272.004	271.709	289.241	280
316.751	317.021	320.566	310.431	321.364	308.761	332.052	302.399	303.193	297.952	299.204	306.839	312.877	315
355.625	336.946	359.606	329.942	360.500	350.069	352.249	340.720	337.975	335.710	333.528	352.538	353.329	355
397.131		382.207		383.158		399.375		380.805		375.794		405.953	400
447.376													450

SLB2，SLB3，SLB4型直交軸大功率齒輪箱實際速比（規格1...13）

直交軸齒輪箱實際速比

類型SLB2…SLB3…SLB4… 規格1…13

實際速比i
iN	齒輪箱規格
iN	1	2	3	4	5	6	7	8	9	10	11	12	13
5.0	4.980	5.043	4.895	4.936	5.006		4.865		5.002		4.897		4.967
5.6	5.566	5.636	5.471	5.480	5.488		5.333		5.483		5.534		5.613
6.3	6.455	6.526	6.334	6.296	6.386	6.205	6.206	6.135	6.381	6.271	6.296	6.226	6.386
7.1	7.068	7.158	6.947	6.959	7.058	6.802	6.860	6.725	7.053	6.875	7.037	7.036	7.138
8.0	7.668	7.765	7.536	7.549	7.657	7.915	7.880	7.825	8.101	8.000	7.994	8.005	8.108
9.0	8.829	8.941	8.678	8.693	8.817	8.749	8.569	8.649	8.810	8.842	8.693	8.947	8.817
10	10.027	10.154	9.855	9.872	10.108	9.490	9.823	9.935	10.099	10.157	9.965	10.164	10.108
11.2	10.938	11.077	10.751	10.769	10.923	10.928	10.615	10.804	10.914	11.045	10.769	11.052	10.923
12.5	12.458	12.615	12.244	12.034	12.703	12.528	12.433	12.385	12.554	12.662	12.334	12.670	12.482
14	14.005	14.182	13.765	13.484	13.964	13.538	13.515	13.385	14.137	13.683	13.821	13.692	13.721
16	15.441	15.636	15.176	15.601	15.835	15.826	16.275	15.773	15.952	15.693	15.522	15.888	16.354
18	17.595	17.818	17.294	17.482	17.407	17.307	17.692	17.041	17.963	17.724	17.393	17.572	17.978
20			19.336	19.614	19.645	19.729	19.948	20.648	20.259	19.940	19.744	19.995	20.276
22.4			21.609	21.919	21.954	21.575	22.146	22.308	22.208	22.520	21.643	22.114	22.226
25			25.021	25.380	25.421	24.349	25.446	25.152	25.843	25.400	25.185	25.103	25.864
28			27.442	27.836	27.881	27.211	28.125	27.923	28.563	27.842	27.836	27.517	28.587
31.5			29.769	30.196	30.245	31.508	30.509	32.084	30.985	32.400	31.975	32.021	32.838
35.5			34.279	34.771	34.827	34.557	35.131	35.461	35.679	35.811	34.771	35.392	35.709
40			38.928	39.487	39.551	37.486	39.896	38.468	40.902	38.846	39.861	40.654	40.936
45			42.467	43.077	43.146	43.166	43.523	44.296	44.202	44.732	43.077	44.209	44.238
50			48.365	49.060	49.139	49.021	49.568	50.304	50.341	51.280	49.060	50.681	50.383
56			54.371	55.152	55.240	53.477	55.723	54.877	56.592	55.417	55.152	54.769	56.639
63			59.947	60.808	60.906	60.904	61.438	62.499	62.396	63.114	60.808	62.376	62.448
71			68.312	69.293	69.404	68.467	70.011	70.259	71.102	70.951	69.293	70.121	71.161
80					77.598	75.489	79.267	77.465	79.497	78.228	80.949	77.313	82.118
90					86.720	86.022	88.585	88.274	88.842	89.143	89.869	88.101	90.016
100					100.413	96.178	102.572	99.945	102.869	99.667	103.259	102.921	104.750
112					110.130	107.484	112.498	111.694	112.824	111.384	114.129	114.262	115.777
125					119.466	124.455	122.035	129.330	122.389	128.971	123.804	131.287	125.592
140					137.567	136.499	140.525	141.846	140.933	141.452	142.562	145.106	144.621
160					156.225	148.071	159.585	153.871	160.047	153.443	161.897	157.408	165.791
180					170.427	170.506	174.092	177.184	174.597	176.692	176.615	181.258	179.166
200					194.098	193.631	198.272	201.215	198.847	200.656	201.145	205.841	204.060
224					218.199	211.234	222.891	219.508	223.537	218.898	226.121	224.554	229.386
250					240.578	240.572	245.752	249.995	246.464	249.300	249.313	255.742	252.913
280					274.147	270.443	280.042	281.036	280.855	280.256	284.101	287.497	288.204
315					302.121	298.181	308.618	309.861	309.513	309.000	313.091	316.984	317.612
355						339.788		353.097		352.116		361.214
400						374.460		389.127		388.046		398.073
450

SLB2，SLB3，SLB4型直交軸大功率齒輪箱實際速比（規格14...26）

直交軸齒輪箱實際速比

類型SLB2…SLB3…SLB4… 規格14…26

實際速比i
齒輪箱規格													iN
14	15	16	17	18	19	20	21	22	23	24	25	26	iN
	4.963												5.0
	5.609	5.630	5.514										5.6
6.156	6.340	6.362	6.234										6.3
6.957	7.132	7.192	7.012	7.239									7.1
7.915	8.101	8.090	7.965	8.143									8.0
8.847	8.810	9.190	8.662	9.250									9.0
10.049	10.099	9.993	9.930	10.059									10
10.928	10.914	11.456	10.731	11.531									11.2
12.528	12.172	12.380	12.770	12.462	12.062		12.256						12.5
13.538	13.810	13.832	13.790	14.654	13.709	13.698	13.709	13.719					14
15.552	15.215	15.665	16.226	16.014	15.192	15.640	15.192	15.538					16
17.007	17.262	17.290	17.522	18.620	17.267	17.252	17.267	17.279					18
20.376	19.379	19.581	19.762	20.348	19.607	19.698	19.607	19.570	19.591		19.284		20
22.282	21.900	21.982	22.333	22.950	22.158	22.368	22.158	22.222	22.139	21.930	21.793	22.206	22.4
25.131	24.916	24.842	25.409	25.936	25.048	25.278	25.048	25.113	25.027	24.783	24.635	25.095	25
27.548	27.847	28.263	28.398	29.507	28.175	28.576	28.175	28.389	28.151	28.015	27.711	28.368	28
32.057	31.634	31.588	32.259	32.979	32.005	32.143	32.005	31.933	31.979	31.513	31.478	31.909	31.5
35.432	34.400	35.883	35.080	37.463	24.804	36.513	34.804	36.275	34.775	35.797	34.231	36.248	35.5
40.700	39.435	39.021	40.215	40.738	39.899	39.706	39.899	39.446	39.868	38.927	39.241	39.417	40
44.259	42.617	44.732	43.460	46.702	43.117	45.518	43.117	45.221	43.082	44.626	42.407	45.187	45
50.737	48.536	48.341	49.496	50.469	49.106	49.190	49.106	48.869	49.065	48.226	48.297	48.833	50
54.831	54.562	55.055	55.614	57.479	55.203	56.022	55.203	55.656	55.158	54.924	54.294	55.615	56
62.446	60.158	61.892	61.348	64.616	60.865	62.978	60.865	62.567	60.815	61.744	59.863	62.520	63
70.200	68.553	68.239	69.909	71.243	69.358	69.438	69.358	68.984	69.301	68.076	68.216	68.933	71
77.400	78.131	77.761	76.506	81.184	79.977	79.127	79.977	78.610	76.491	77.575	78.100	78.551	80
88.200	85.645	88.626	83.865	88.846	87.670	91.242	87.670	86.772	86.448	85.631	88.260	89.933	90
101.780	99.664	97.150	97.593	97.391	102.020	100.017	102.020	98.061	98.353	96.770	100.414	101.633	100
111.569	110.155	113.052	107.865	113.333	112.759	116.389	112.759	111.565	109.924	110.097	112.228	115.629	112
129.831	126.535	124.952	123.904	125.263	129.526	128.641	129.526	124.690	124.870	123.049	127.487	129.232	125
143.498	137.599	143.532	134.739	143.889	140.851	147.769	140.851	141.643	135.788	139.780	138.634	146.803	140
155.663	157.741	156.082	154.462	156.471	161.470	160.690	161.470	154.029	155.665	152.002	158.928	159.639	160
179.284	170.467	178.930	166.923	179.375	174.496	184.212	174.496	176.576	168.224	174.252	171.749	183.008	180
205.487	194.143	193.365	190.107	193.846	198.732	199.073	198.732	190.821	191.588	188.310	195.603	197.772	200
222.065	218.249	220.222	213.712	220.769	223.408	226.722	223.408	217.324	215.377	214.464	219.891	225.240	224
252.907	240.634	247.566	235.631	248.182	246.322	254.874	246.322	244.309	237.467	241.094	242.444	253.208	250
284.310	274.210	272.957	268.510	273.636	280.692	281.015	280.692	269.366	270.602	265.822	276.274	279.178	280
313.470	302.191	311.045	295.909	311.818	309.334	320.226	309.334	306.952	298.215	302.913	304.465	318.133	315
357.210		342.784		343.636		352.902		338.272		333.823		350.596	355
393.660													400
													450

頁次：6/8 每頁10條共76條信息分頁：[1][2][3][4][5][6][7][8]
