7側隙
7.1本標準對齒輪傳動側隙只規定其最小法向側隙jnmin.

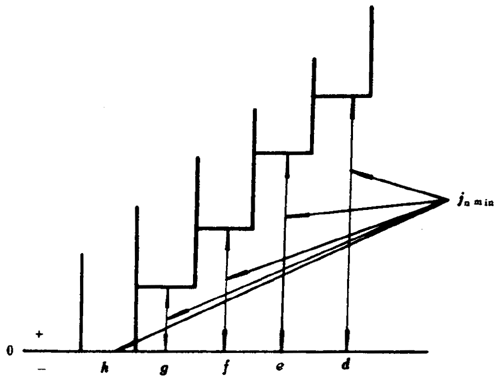

7.2側隙種類分為5種,按jnmin值從小到大的順序,用字母h、g、f、e、d表示,h為零,如圖1所示。具體數值見表4。
圖1

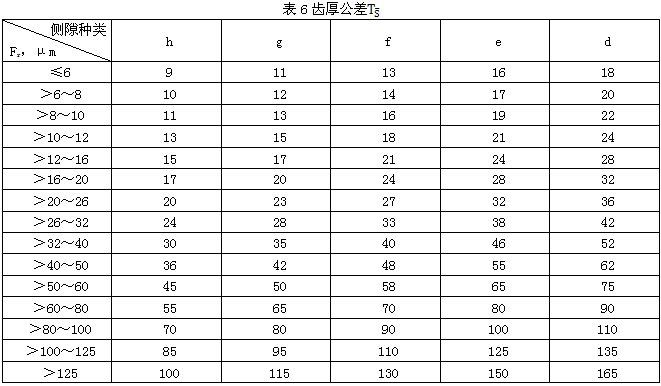

7.3評定齒輪傳動側隙的指標是 和TS。具體數值分別見表5、表6。
8圖樣標注
8.1在齒輪工作圖上,應標注齒輪的精度等級和側隙種類。
8.2標注示例

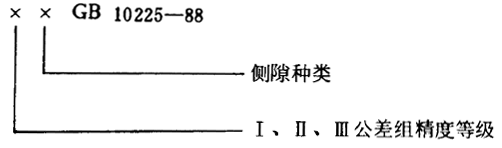

8.2.1齒輪的三個公差組精度指標,采用相同的精度等級時,標注為:
例:齒輪的Ⅰ、Ⅱ、Ⅲ公差組精度等級同為7級,側隙種類為g,標注為:
7g GB 10225-88

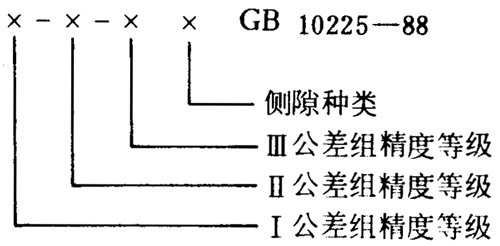

8.2.2齒輪的三個公差組精度指標,采用不同的精度等級時,標注為:
例:齒輪的Ⅰ公差組精度等級為7級,Ⅱ公差組精度等級為7級,Ⅲ公差組精度等級為6級,側隙種類為f,標注為:
7-7-6f GB 10225-88
表2公差或極限偏差Fi′,F(xiàn)P,F(xiàn)PK,F(xiàn)r,F(xiàn)iΣc″,F(xiàn)vj,fi′,fPt,ff,fiΣc″
精度
等級 |
代號 |
中點模數
(mm)mm |
中點分度圓直徑mm |
≤12 |
>12~20 |
>20~32 |
>32~50 |
>50~80 |
>80~125 |
>125~200 |
4 |
Fi′ |
0.1~0.5 |
11 |
12 |
13 |
14 |
15 |
17 |
19 |
>0.5~<1 |
12 |
13 |
14 |
15 |
16 |
18 |
20 |
FP |
0.1~<1 |
6 |
7 |
8 |
9 |
10 |
12 |
14 |
FPK |
0.1~<1 |
4 |
4 |
5 |
5 |
6 |
7 |
8 |
fi′ |
0.1~0.5 |
8 |
>0.5~<1 |
10 |
fPt |
0.1~0.5 |
3 |
>0.5~<1 |
4 |
ff |
0.1~0.5 |
5 |
>0.5~<1 |
6 |
5 |
Fi′ |
0.1~0.5 |
17 |
18 |
19 |
20 |
22 |
26 |
29 |
>0.5~<1 |
18 |
19 |
20 |
21 |
23 |
27 |
30 |
FP |
0.1~<1 |
10 |
11 |
12 |
14 |
16 |
19 |
22 |
FPK |
0.1~<1 |
6 |
6 |
7 |
8 |
9 |
11 |
13 |
Fr |
0.1~<1 |
8 |
9 |
10 |
11 |
13 |
15 |
18 |
FiΣc″ |
0.1~<1 |
16 |
18 |
20 |
22 |
25 |
29 |
35 |
fi′ |
0.1~0.5 |
12 |
>0.5~<1 |
14 |
fPt |
0.1~0.5 |
5 |
>0.5~<1 |
6 |
ff |
0.1~0.5 |
7 |
>0.5~<1 |
8 |
fiΣc″ |
0.1~0.5 |
9 |
>0.5~<1 |
11 |
6 |
Fi′ |
0.1~0.5 |
26 |
28 |
30 |
33 |
36 |
40 |
45 |
>0.5~<1 |
27 |
29 |
31 |
34 |
37 |
41 |
46 |
FP |
0.1~<1 |
16 |
18 |
20 |
23 |
26 |
30 |
36 |
FPK |
0.1~<1 |
9 |
10 |
11 |
13 |
15 |
17 |
20 |
Fr |
0.1~<1 |
13 |
14 |
16 |
18 |
21 |
24 |
28 |
FiΣc″ |
0.1~<1 |
25 |
27 |
31 |
35 |
41 |
47 |
55 |
fi′ |
0.1~0.5 |
18 |
>0.5~<1 |
20 |
fPt |
0.1~0.5 |
8 |
>0.5~<1 |
9 |
ff |
0.1~0.5 |
10 |
>0.5~<1 |
11 |
fiΣc″ |
0.1~0.5 |
14 |
>0.5~<1 |
18 |
7 |
Fi′ |
0.1~0.5 |
36 |
38 |
41 |
45 |
49 |
55 |
62 |
>0.5~<1 |
38 |
40 |
43 |
47 |
51 |
57 |
64 |
FP |
0.1~<1 |
23 |
25 |
28 |
32 |
36 |
42 |
50 |
Fr |
0.1~<1 |
18 |
21 |
23 |
26 |
30 |
34 |
40 |
FiΣc″ |
0.1~<1 |
35 |
40 |
45 |
51 |
59 |
67 |
78 |
Fvj |
0.1~<1 |
25 |
29 |
31 |
35 |
40 |
46 |
54 |
fi′ |
0.1~0.5 |
24 |
>0.5~<1 |
28 |
fPt |
0.1~0.5 |
11 |
>0.5~<1 |
13 |
ff |
0.1~0.5 |
13 |
>0.5~<1 |
15 |
fiΣc″ |
0.1~0.5 |
19 |
>0.5~<1 |
25 |
8 |
Fi′ |
0.1~0.5 |
49 |
52 |
56 |
61 |
67 |
75 |
85 |
>0.5~<1 |
52 |
55 |
59 |
64 |
70 |
78 |
88 |
FP |
0.1~<1 |
32 |
35 |
39 |
44 |
50 |
58 |
68 |
Fr |
0.1~<1 |
24 |
26 |
29 |
33 |
38 |
43 |
50 |
FiΣc″ |
0.1~<1 |
47 |
51 |
57 |
65 |
75 |
85 |
100 |
Fvj |
0.1~<1 |
33 |
36 |
39 |
44 |
50 |
58 |
68 |
fi′ |
0.1~0.5 |
34 |
>0.5~<1 |
39 |
fPt |
0.1~0.5 |
16 |
>0.5~<1 |
18 |
fiΣc″ |
0.1~0.5 |
27 |
>0.5~<1 |
35 |
9 |
Fr |
0.1~<1 |
30 |
33 |
37 |
42 |
48 |
55 |
63 |
FiΣc″ |
0.1~<1 |
59 |
65 |
73 |
82 |
95 |
110 |
125 |
Fvj |
0.1~<1 |
41 |
45 |
50 |
57 |
65 |
75 |
85 |
fPt |
0.1~0.5 |
20 |
>0.5~<1 |
23 |
fiΣc″ |
0.1~0.5 |
34 |
>0.5~<1 |
44 |
10 |
FiΣc″ |
0.1~<1 |
74 |
82 |
92 |
105 |
120 |
135 |
155 |
Fvj |
0.1~<1 |
52 |
57 |
64 |
72 |
82 |
92 |
105 |
fPt |
0.1~0.5 |
25 |
>0.5~<1 |
29 |
fiΣc″ |
0.1~0.5 |
43 |
>0.5~<1 |
55 |
11 |
Fr |
0.1~<1 |
48 |
53 |
59 |
66 |
75 |
85 |
100 |
FiΣc″ |
0.1~<1 |
95 |
105 |
115 |
130 |
145 |
165 |
190 |
Fvj |
0.1~<1 |
65 |
72 |
80 |
90 |
100 |
115 |
135 |
fPt |
0.1~0.5 |
31 |
>0.5~<1 |
36 |
fiΣc″ |
0.1~0.5 |
54 |
>0.5~<1 |
69 |
12 |
Fr |
0.1~<1 |
60 |
66 |
74 |
83 |
92 |
105 |
125 |
FiΣc″ |
0.1~<1 |
120 |
130 |
145 |
165 |
185 |
210 |
240 |
Fvj |
0.1~<1 |
82 |
90 |
100 |
115 |
130 |
145 |
165 |
fPt |
0.1~0.5 |
39 |
>0.5~<1 |
45 |
fiΣc″ |
0.1~0.5 |
68 |
>0.5~<1 |
86 |
|
|
|
|
|
|
|
|
|
|
|
注:①表中FPK數值系數按k=Z/8給出。如k≠Z/8時,應按附錄B中的FPK關系式進行計算。
