(單位:mm)
型 號 |
A |
B |
C |
D |
E |
F |
G |
H |
K |
AC |
AD |
HD |
L |
YFQF400-4、6 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
400 |
35 |
560 |
835 |
1200 |
1860 |
YFQF450-4 |
800 |
1120 |
355 |
120 |
210 |
32 |
109 |
450 |
35 |
620 |
895 |
1350 |
2035 |
YFQF450-6、8 |
800 |
1120 |
355 |
130 |
250 |
32 |
119 |
450 |
35 |
620 |
895 |
1350 |
2075 |
YFQF500-4 |
900 |
1250 |
475 |
130 |
250 |
32 |
119 |
500 |
42 |
690 |
965 |
1500 |
2220 |
YFQF500-6、8 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
500 |
42 |
690 |
965 |
1500 |
2220 |
YFQF560-4 |
1000 |
1400 |
500 |
150 |
250 |
36 |
138 |
560 |
42 |
750 |
1050 |
1800 |
2900 |
YFQF560-6、8 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
560 |
42 |
750 |
1050 |
1800 |
2900 |
YFQF630-4 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2000 |
3100 |
YFQF630-6、8 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
630 |
48 |
830 |
1165 |
2000 |
3100 |
YF630-8/10 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2000 |
2960 |
YF630-8/10 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2000 |
3100 |
YF710-10/12 |
1400 |
1800 |
530 |
200 |
350 |
45 |
185 |
710 |
56 |
1300 |
1320 |
2200 |
3000 |

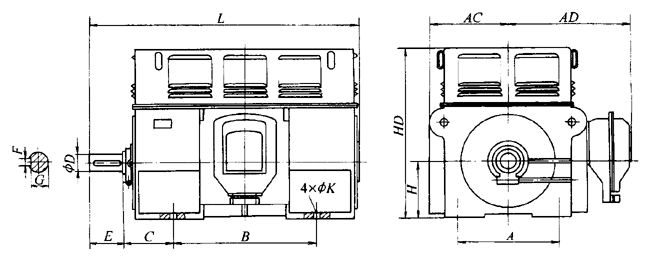

注:表中YF630-8/10、710-10/12外形圖與YFQF系列相同,因此放在一起編寫,YF系列,防護等級為IP23。

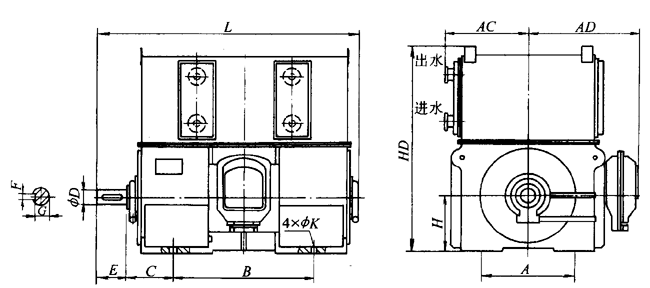

YFSK系列(IP44)電動機外形及安裝尺寸
(單位:mm)
型 號 |
A |
B |
C |
D |
E |
F |
G |
H |
K |
AC |
AD |
HD |
L |
YFSK400-4、6 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
400 |
35 |
580 |
835 |
1495 |
1860 |
YFSK450-4 |
800 |
1120 |
355 |
120 |
210 |
32 |
109 |
450 |
35 |
630 |
895 |
1595 |
2035 |
YFSK450-6、8 |
800 |
1120 |
355 |
130 |
250 |
32 |
119 |
450 |
35 |
630 |
895 |
1595 |
2075 |
YFSK500-4 |
900 |
1250 |
475 |
130 |
250 |
32 |
119 |
500 |
42 |
690 |
965 |
1795 |
2220 |
YFSK500-6、8 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
500 |
42 |
690 |
965 |
1795 |
2220 |
YFSK560-4 |
1000 |
1400 |
500 |
150 |
250 |
36 |
138 |
560 |
42 |
765 |
1050 |
2550 |
2900 |
YFSK560-6、8 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
560 |
42 |
765 |
1050 |
2550 |
2900 |
YFSK630-4 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2850 |
3100 |
YFSK630-6/8 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
630 |
48 |
830 |
1165 |
2850 |
3100 |
YFSK630-8/10 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2000 |
2960 |
YFSK630-8/10 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2000 |
3100 |
YFSK710-10/12 |
1400 |
1800 |
530 |
200 |
350 |
45 |
185 |
710 |
56 |
1300 |
1320 |
2200 |
3000 |
注:表中YFKS630-8/10、710-10/12外形圖與YFKS單速電動機相同,因此放在一起編寫,YFKS630-8/10、710-10/12防護等級為IP44(水冷)。

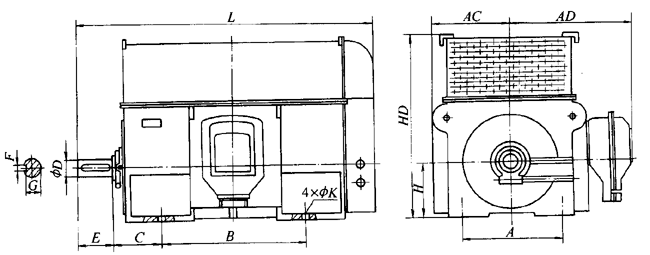

YFKK系列(IP44、IP54(空冷)電動機外形及安裝尺寸
型 號 |
A |
B |
C |
D |
E |
F |
G |
H |
K |
AC |
AD |
HD |
L |
YFKK400-4 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
400 |
35 |
560 |
835 |
1260 |
2030 |
YFKK450-4 |
800 |
1120 |
355 |
120 |
210 |
32 |
109 |
450 |
35 |
620 |
895 |
1430 |
2200 |
YFKK450-6 |
800 |
1120 |
355 |
130 |
250 |
32 |
119 |
450 |
35 |
620 |
895 |
1430 |
2240 |
YFKK500-4 |
900 |
1250 |
475 |
130 |
250 |
32 |
119 |
500 |
42 |
690 |
965 |
1600 |
2430 |
YFKK500-6、8 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
500 |
42 |
690 |
965 |
1600 |
2430 |
YFKK560-4 |
1000 |
1400 |
500 |
150 |
250 |
36 |
138 |
560 |
42 |
765 |
1050 |
2400 |
3300 |
YFKK560-6、8 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
560 |
42 |
765 |
1050 |
2400 |
3300 |
YFKK630-4 |
1120 |
1600 |
530 |
170 |
300 |
40 |
157 |
630 |
48 |
830 |
1165 |
2700 |
3600 |
YFKK630-6、8 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
630 |
48 |
830 |
1165 |
2700 |
3600 |
YFKK710-6 |
1250 |
1800 |
400 |
180 |
300 |
45 |
165 |
710 |
8-φ42 |
900 |
1220 |
2675 |
3060 |
YFKK450-4/6 |
800 |
1120 |
355 |
130 |
250 |
32 |
119 |
450 |
35 |
620 |
955 |
1700 |
2235 |
YFKK500-6/8 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
500 |
42 |
660 |
1015 |
1960 |
2430 |
YFKK630-6/8、8/10 |
1180 |
1600 |
475 |
140 |
250 |
— |
— |
630 |
8-φ42 |
850 |
1200 |
2445 |
3000 |
YFKK710-8/10 |
1320 |
1800 |
500 |
180 |
300 |
— |
— |
710 |
8-φ42 |
950 |
1380 |
2160 |
3330 |
注:YFKK450-4/6、500-6/8、630-6/8和710-8/10與單速YFKK系列外形相同。
