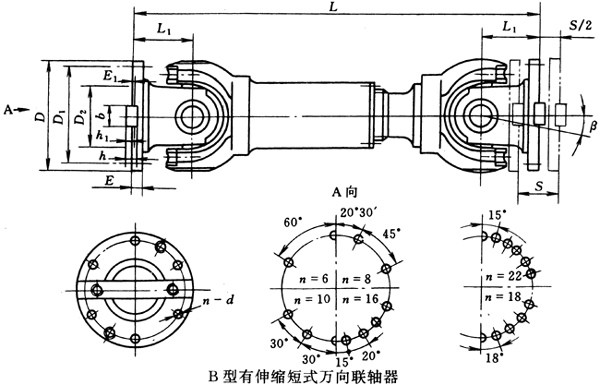

| B型有伸縮短式萬向聯軸器基本參數和主要尺寸（JB/T3241-91）
B型有伸縮短式萬向聯軸器基本參數和主要尺寸（JB/T3241-91）/mm
|
型號 |
回轉直
徑D |
公稱轉矩
Tn/kN·m |
疲勞轉矩
Tf/kN·m |
軸線折角
β/(°)≤ |
伸縮
量S |
L |
D1
(js11) |
D2
(H7) |
E |
E1 |
b×h |
h1 |
L1 |
n-d |
轉動慣量
I/kg·m2 |
質量
m/kg |
|
SWP160B |
160 |
16 |
8 |
10 |
50 |
585 |
140 |
95 |
15 |
4 |
20×12 |
6 |
85 |
6-13 |
0.14 |
44 |
|
SWP180B |
180 |
20 |
10 |
60 |
640 |
155 |
105 |
15 |
4 |
24×14 |
7 |
95 |
6-15 |
0.23 |
56 |
|
SWP200B |
200 |
31.5 |
16 |
70 |
730 |
175 |
125 |
17 |
5 |
28×16 |
8 |
110 |
8-15 |
0.36 |
75 |
|
SWP225B |
225 |
40 |
20 |
76 |
830 |
196 |
135 |
20 |
5 |
32×18 |
9 |
130 |
8-17 |
0.61 |
108 |
|
SWP250B |
250 |
63 |
31.5 |
80 |
860 |
218 |
150 |
25 |
5 |
40×25 |
12.5 |
135 |
8-19 |
0.98 |
138 |
|
SWP285B |
285 |
90 |
45 |
100 |
1000 |
245 |
170 |
27 |
7 |
40×30 |
15 |
150 |
8-21 |
2.12 |
229 |
|
SWP315B |
315 |
140 |
63 |
110 |
1120 |
280 |
185 |
32 |
7 |
40×30 |
15 |
170 |
10-23 |
3.8 |
309 |
|
SWP350B |
350 |
180 |
90 |
120 |
1230 |
310 |
210 |
35 |
8 |
50×32 |
16 |
185 |
10-23 |
6.6 |
408 |
|
SWP390B |
390 |
250 |
112 |
120 |
1310 |
345 |
235 |
40 |
8 |
70×36 |
18 |
205 |
10-25 |
10.5 |
539 |
|
SWP435B |
435 |
355 |
160 |
150 |
1555 |
385 |
255 |
42 |
10 |
80×40 |
20 |
235 |
16-28 |
22.39 |
903 |
|
SWP480B |
480 |
450 |
224 |
170 |
1740 |
425 |
275 |
47 |
12 |
90×45 |
22.5 |
265 |
16-31 |
38.21 |
1243 |
|
SWP550B |
550 |
710 |
315 |
190 |
1905 |
492 |
320 |
50 |
12 |
100×45 |
22.5 |
290 |
16-31 |
61 |
1643 |
|
SWP600B |
600 |
1000 |
500 |
210 |
2600 |
544 |
380 |
55 |
15 |
90×55 |
27.5 |
360 |
22-34 |
99.13 |
2335 |
|
SWP640B |
640 |
1250 |
630 |
230 |
2780 |
575 |
380 |
60 |
15 |
100×60 |
30 |
385 |
18-38 |
170.21 |
2720 | |
