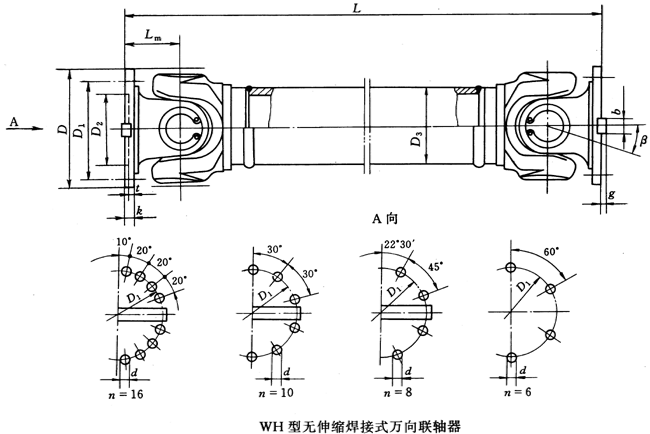

WH型無伸縮焊接式萬向聯(lián)軸器外形及安裝尺寸(JB/T5513-91)
WH型無伸縮焊接式萬向聯(lián)軸器基本參數和主要尺寸(JB/T5513-91)/mm
型號 |
回轉
直徑
D |
公稱轉
矩Tn/
kN·m |
疲勞轉
矩Tf/
kN·m |
軸線折
角β/
(°)≤ |
Lmin |
D1
(js11) |
D2
(H7) |
D3 |
Lm |
n-d |
k |
t |
b
(h9) |
g |
轉動慣量
I/kg·m2 |
質量m/kg |
Lmin |
增長100 |
Lmin |
增長100 |
SWC100WH |
100 |
1.25 |
0.63 |
25 |
243 |
84 |
57 |
60 |
55 |
6-9 |
7 |
2.5 |
- |
- |
0.0039 |
0.00019 |
4.5 |
0.35 |
SWC120WH |
120 |
2.5 |
1.25 |
25 |
307 |
102 |
75 |
70 |
65 |
8-11 |
8 |
2.5 |
- |
- |
0.0096 |
0.00044 |
7.7 |
0.55 |
SWC150WH |
150 |
5 |
2.5 |
25 |
350 |
130 |
90 |
89 |
80 |
8-13 |
10 |
|
- |
- |
0.0371 |
0.00157 |
18 |
0.85 |
SWC180WH |
180 |
12.5 |
6.3 |
25 |
480 |
155 |
105 |
114 |
110 |
8-17 |
17 |
5 |
- |
- |
0.15 |
0.007 |
48 |
2.8 |
SWC225WH |
225 |
40 |
20 |
15 |
520 |
196 |
135 |
152 |
120 |
8-17 |
20 |
5 |
32 |
9 |
0.365 |
0.0234 |
78 |
4.9 |
SWC250WH |
250 |
63 |
31.5 |
15 |
620 |
218 |
150 |
168 |
140 |
8-19 |
25 |
6 |
40 |
12.5 |
0.847 |
0.0277 |
124 |
5.3 |
SWC285WH |
280 |
90 |
45 |
15 |
720 |
245 |
170 |
194 |
160 |
8-21 |
27 |
7 |
40 |
15 |
1.756 |
0.051 |
185 |
6.3 |
SWC315WH |
315 |
125 |
63 |
15 |
805 |
280 |
185 |
219 |
180 |
10-23 |
32 |
8 |
40 |
15 |
2.893 |
0.0795 |
262 |
8 |
SWC350WH |
350 |
180 |
90 |
15 |
875 |
310 |
210 |
267 |
194 |
10-23 |
35 |
8 |
50 |
16 |
5.013 |
0.2219 |
374 |
15 |
SWC390WH |
390 |
250 |
125 |
15 |
955 |
345 |
235 |
267 |
215 |
10-25 |
40 |
8 |
70 |
18 |
8.406 |
0.2219 |
506 |
15 |
SWC440WH |
440 |
355 |
180 |
15 |
1155 |
390 |
255 |
325 |
260 |
16-28 |
42 |
10 |
80 |
20 |
15.79 |
0.4744 |
790 |
21.7 |
SWC490WH |
490 |
500 |
250 |
15 |
1205 |
435 |
275 |
325 |
270 |
16-31 |
47 |
12 |
90 |
22.5 |
26.54 |
0.4744 |
1014 |
21.7 |
SWC550WH |
550 |
710 |
355 |
15 |
1355 |
492 |
320 |
426 |
305 |
16-31 |
50 |
12 |
100 |
22.5 |
48.32 |
1.357 |
1526 |
34 |
注:1.Tf為在交變負荷下按疲勞強度所允許的轉矩。
2. L為安裝長度,按需要確定。
